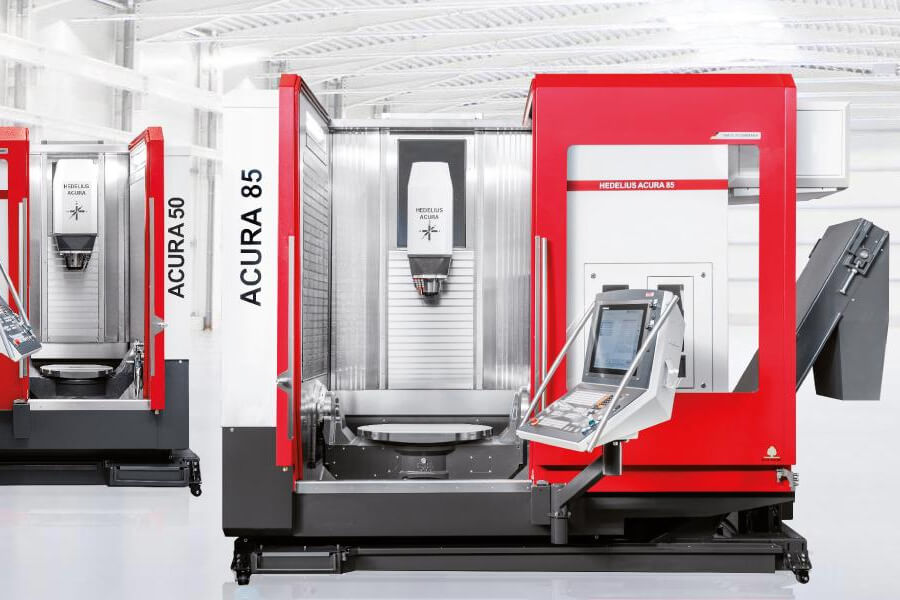

| Model | Acura 50 | Acura 65 | Acura 85 |
|---|---|---|---|
| Przejazdy X Y Z | 500 x 550/370 x 550 mm | 700 x 650/465 x 600 mm | 900 x 850/600 x 700 mm |
| Wychył A/C | +30° – -115° | +30° – -115° | +30° – -115° |
| Obroty wrzeciona | 14000/18000/24000 | 14000/18000/24000 | 14000/18000/24000 |
| Stożek wrzeciona | SK40 / BT40 / HSK A63 | SK40 / BT40 / HSK A63 | SK40 / BT40 / HSK A63 |
| Moc wrzeciona | 22,00/29,00/30,00/35,00 kW | 22,00/29,00/30,00/35,00/50,00 kW | 22,00/29,00/30,00/35,00/50,00 kW |
| Posuwy szybkie | 40/40/40 m/min | 40/40/40 m/min | 40/40/40 m/min |
| Magazyn narzędzi | 55/80/235/319 (max.) | 65/90/245/329 (max.) | 80/260/344 (max.) |
| Powierzchnia stołu | 500 x 430 mm | 650 x 540 mm | 850 x 750 mm |
